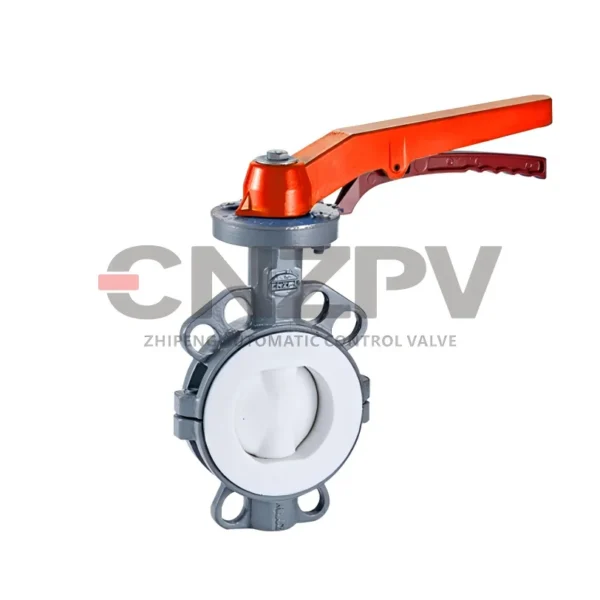

CNZPV®PTFE(Teflon) Lined Wafer Type Butterfly Valve With Manual Lever

CNZPV®PTFE(Teflon) Lined Wafer Type Butterfly Valve With Manual Lever

Categories:

PTFE(Teflon) Lined Wafer Type Butterfly Valve With Manual Lever

Nominal Diameter: DN50-200,NPS 2″-8″
Nominal Pressure: PN10,PN16,PN25,Class150
Connection Standard: HG20592-2009,ASME B16.5 Class 150
Body Material: WCB,CF8,CF8M,CF3M
Temp. Range: -40℃~160℃,-40°F~320°F
Flow Characteristic: Equal percentage,Linear,Quick-Open
Face-To-Face:GB/T12221; API609
Pressure Testing:GB/T13927; API598
Actuator: Pneumatic,Electric,Manual Lever Operated

Product Overview

CNZPV’s Manual Lever PTFE(Teflon) Lined Wafer Type Butterfly Valve is an economical and robust valve with a fluorine plastic lining, offering longer service life with lower maintenance cost. Self-lubricating bearings ensures perfect guiding and turning of the shaft without seizure or premature wear. The gaskets are not required since the lining that extends onto the faces acts as a gasket. The bonded liner extends the lifetime of the valve ensuring there is no corrosion between the body and disc.

Performance Characteristics

CNZPV’s Manual Lever PTFE(Teflon) Lined Wafer Type Butterfly Valve features a valve body(seat) and inner parts(disc) that come into contact with the fluid, which are lined with fluoroplastic through a high-temperature molding process. Additionally, the inner cavity of the metal valve body undergoes gear machining to ensure complete bonding between the lining material and metal, thereby enhancing both service life and performance. This valve effectively isolates corrosive media from contacting the valve body while preventing any corrosion of metallic materials within it. With excellent sealing performance, high-response,precise flow characteristics, it finds extensive applications in conditions involving strong corrosive media such as acids, alkalis, salts as well as volatile and penetrative gas or liquid media.

ADVANTAGES:
1. Corrosion-resistant: It can withstand the corrosion of various media, including concentrated nitric acid and aqua regia.
2.  Small size and light weight, easy to install and maintenance
3. Excellent sealing performance with non-leak provides long service life.
4.Simple structure  and can be quickly Open or shut-off  by 90 degrees rotation.
5.Pneumatic and electric actuators can be configured according to customer requirements to meet the needs of remote control.

Technical Parameters

Body MaterialWCB,CF8,CF8M,CF3M
Seat MaterialWCB,CF8,CF8M,CF3M
Inner-Lined MaterialF40(ETFE),F46(FEP),PTFE(F4),PFA
Disc MaterialWCB,304,316,316L
Valve TypeStraight through type butterfly valve
Temp. Range-40℃~160℃,-40°F~320°F
Leakage LevelANSI B16.104 Grade IV
Flow CharacteristicEqual percentage,Linear,Quick-Open
EndsWafer Type/Flang Type
Flange Connection StandardHG20592-2009,ANSI B16.5
Available ActuatorsPneumatic Piston Type,Electric Type
Manual Lever Operated

As:chloroacetic acid, liquid chlorine, chlorine gas, bromine and other strong corrosive material, the selection of lining materials must be carefully.

Fluid’s Temp Medium Characteristics Location Lining Material Forming Process
≤80℃ General Medium General Position F40(ETFE) Injection Processing
≤120℃ Strong Corrosive Medium Special Position F46(FEP) Mould Processing
≤160℃ Strong Corrosive Medium Special Position PFA Mould Processing
