CNZPV®FEP Lined Flanged Bellows Sealing Single-Seat Globe Valve

CNZPV®FEP Lined Flanged Bellows Sealing Single-Seat Globe Valve

Categories:

FEP Lined Flanged Bellows Sealing Single-Seat Globe Valve

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10,PN16,PN25,CL150
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Lining Material: F40(ETFE),F46(FEP),PFA
Temp.Range: -30℃-180℃,-22°F一356°F
Face-To-Face:HG/T3704,GB/T1221,ASME B16.10
Pressure Testing:GB/T13927-92,API598
Actuator: Pneumatic,Electric,Manually Operated

Product Overview

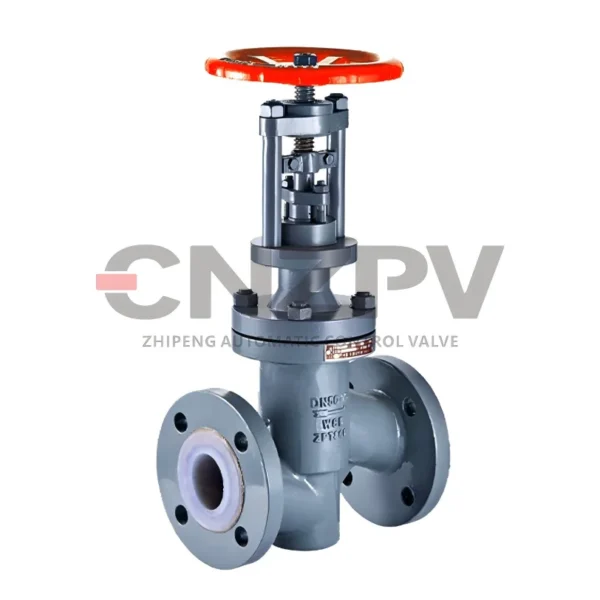

The FEP Lined Flanged Bellows Sealing Single-Seat Globe Valve,Because seat and disk designs give flow characteristics with proportionate correlations between valve lift and flow rate, CNZPV globe valves are particularly efficient for throttling service. This ensures precise flow management and control. the globe valves equipped with a layer of fluoroplastic coating on both the valve body and valve inner parts surfaces that come into contact with the fluid. This effectively isolates the corrosive media from any metal contact, providing excellent protection against corrosion for all metal materials.The lined bellows sealing globe valves also equipped with lined bellows pipe,it provides a more stable sealing performance,suitable for more harsh working conditions and ensures zero leakage.

Performance Characteristics

The Advantages:

1. Corrosion resistance: corrosion resistance of almost all media (including concentrated nitric acid and aqua regia).
2. Good sealing performance: PTFE Bellows or HC sealing and V-shaped PTFE packing two kinds of combined sealing structure to ensure no leakage.
3. The fluid channel is parallel streamlined, with low pressure drop loss.
4.Top-entry construction and quick-change trim for easy maintenance.
5.Wide material selection available for different applications.
6.OEM/ODM are acceptable.

Technical Parameters

Body/Upper Bonnet MaterialWCB,CF8,CF3,CF8M,CF3M
Spool MaterialCF8,CF3,CF8M,CF3M
Inner-Lined MaterialF40(PTFE),F46(FEP),PFA
Bellows  MaterialTFM1600,HC276
Stem Material17-4PH,HC276,304
Valve TypeStraight-through type, Angle type,
Jacket insulated type
Upper Bonnet TypeStandard Type,Bellows Sealing Type
Temp. Range-30℃-180℃, -22F-356F
Stem Seal FormStandard packing seal,Bellows seal
Leakage Level(ANSI)ANSI B16.104 Grade VI
Flow CharacteristicEqual percentage,Linear,Quick-Open
EndsFlang(RF/FM)
Rangeability30:1 50:1
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Available ActuatorsPneumatic Diaphragm Type/Pneumatic Piston Type
Electric Type
Manually Handwheel Operated
………
