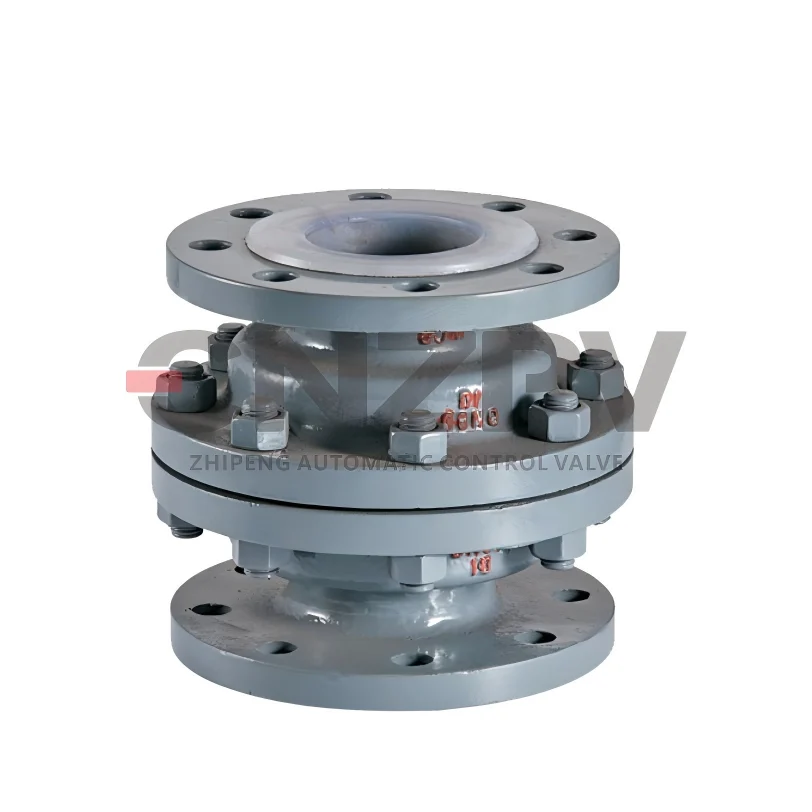

CNZPV®Anti-Corrosion Fluorine Lined Lifting-Type Flanged Check Valve-H41

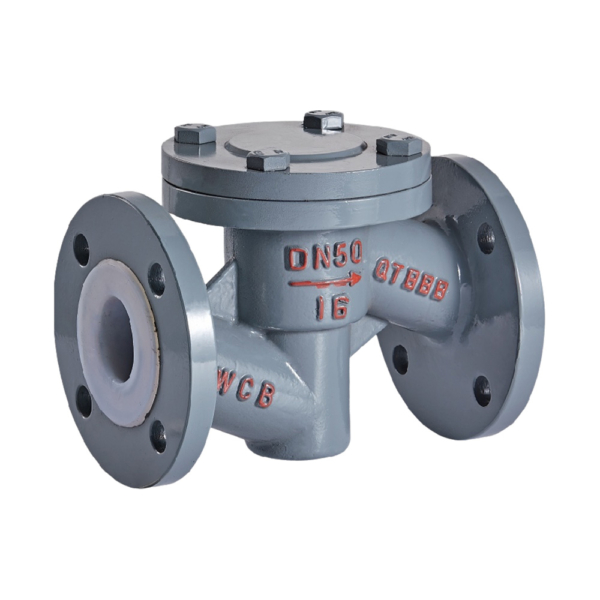

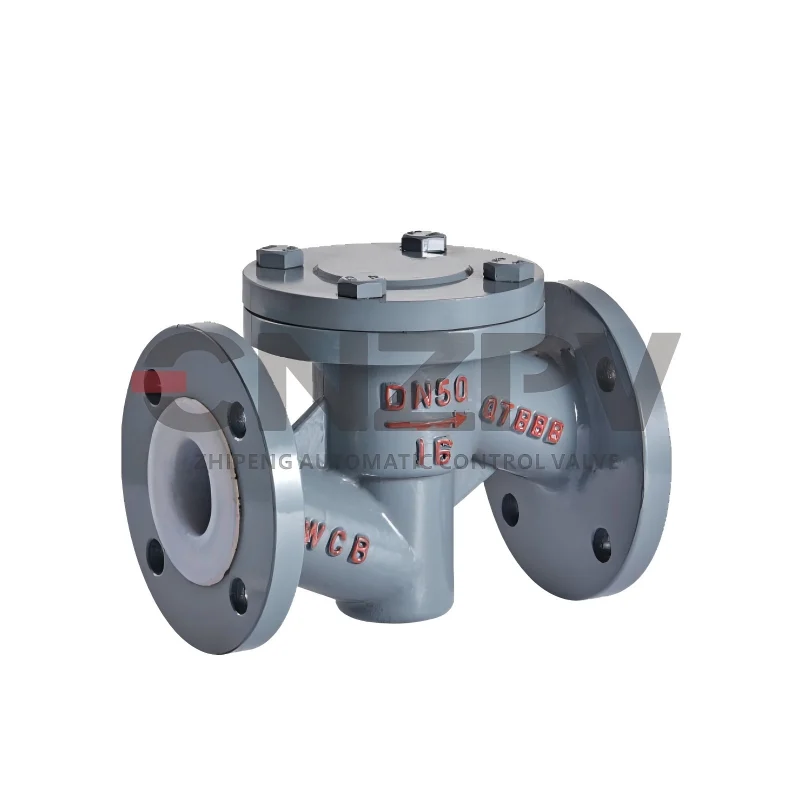

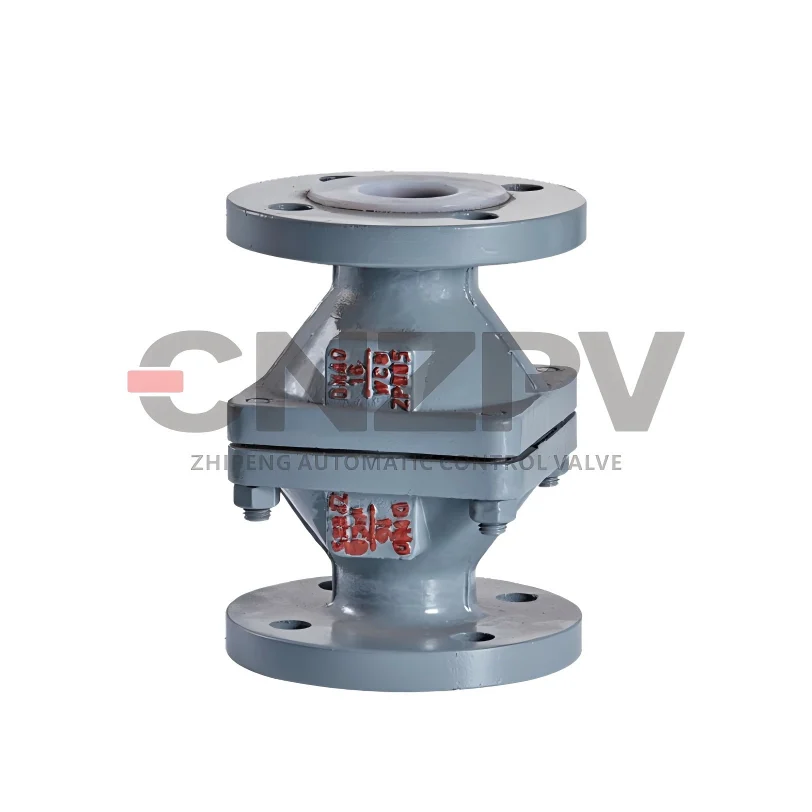

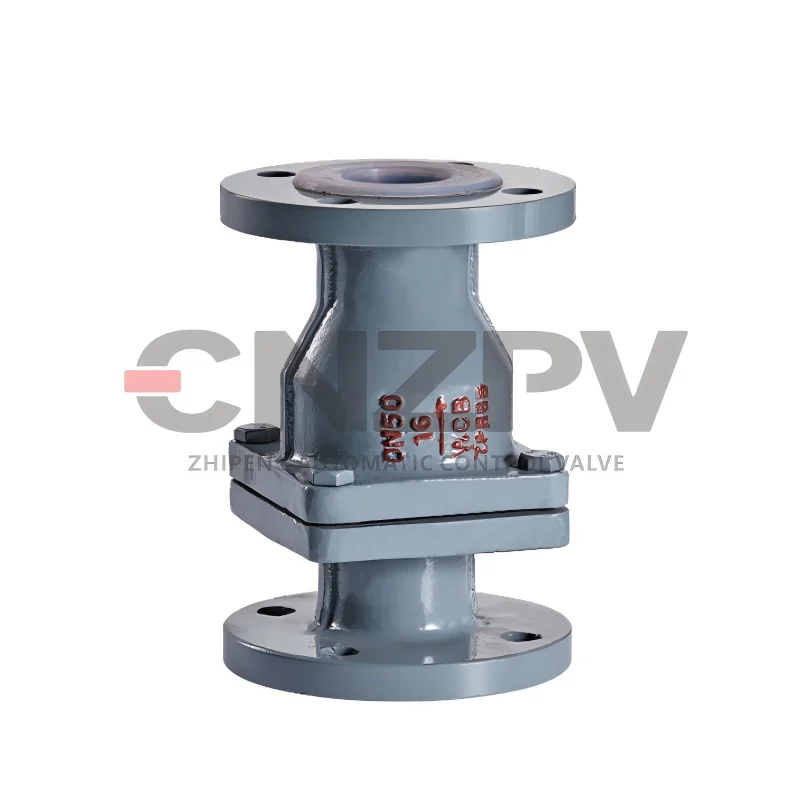

CNZPV®Anti-Corrosion Fluorine Lined Lifting-Type Flanged Check Valve-H41

Categories:

Anti-Corrosion Fluorine Lined Lifting-Type Flanged Check Valve(H41)

Nominal Diameter: DN15-200,NPS 1/2″-8″
Nominal Pressure: PN10,PN16,PN25,CL150
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Lining Material: F40(ETFE),F46(FEP),PFA
Temp.Range: -30℃-180℃,-22°F一356°F
Face-To-Face:HG/T3704,GB/T1221,ASME B16.10
Pressure Testing:GB/T13927-92,API598

Product Overview

Fluorine Lined Lifting-Type Check Valve is similar in structure to a globe valve, except for the lack of a stem that drives the valve disc. The medium flows in from the inlet end (lower side) and out from the outlet end (upper side). When the inlet pressure is stronger than the sum of the weight of the valve disc and its flow resistance, the valve is opened. On the contrary, when the medium flows back, the valve closes.

Performance Characteristics

Fluorine Lined Lifting-Type Check Valve for the control of corrosive or strongly corrosive media, the valve body cavity surface covered with PTFE plastic, with high strength, good corrosion resistance; applicable to different work temperature and fluid pipeline, to prevent all kinds of pipeline or equipment on the media backflow of the one-way opening and closing. Applicable to various concentrations of strong alkali organic solvents and other corrosive gases, liquids and media pipeline use.The Lifting-type check valve’s structure is similar to the general disconnecting valve, its valve flap along the channel center for lifting movement, reliable action, generally can only be installed in the horizontal pipeline, lifting the common characteristics of vertical check valve valve valve flap along the valve access axis to do the lifting movement, generally should be installed in the vertical pipeline.

Technical Parameters

Body/Upper Bonnet MaterialWCB,CF8,CF3,CF8M,CF3M
Plug MaterialCF8,CF3,CF8M,CF3M
Inner-Lined MaterialF40(PTFE),F46(FEP),PFA
Valve TypeLifting-Type Check Valve
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Temp. Range-30℃-180℃, -22F-356F
Leakage LevelANSI B16.104 Grade VI
Temp. Range-30℃-180℃, -22F-356F
EndsFlang(RF/FM)
Leakage Level(ANSI)ANSI B16.104 Grade VI
