CNZPV®Pneumatic Hastelloy Alloy Regulating Valve-HC276

CNZPV®Pneumatic Hastelloy Alloy Regulating Valve-HC276

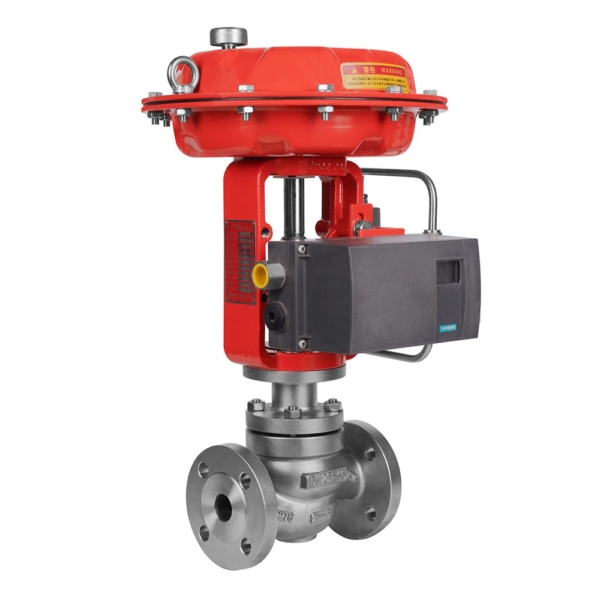

Pneumatic Hastelloy Alloy Regulating Valve(HC-276)

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10-PN100,CL150-CL600
Connection Standard: HG20592-2009,ANSIB16.5,JIS B2220
Body Material: Hastelloy Alloy
Spool&Seat Material:Hastelloy Alloy
Typies of Bonnet:
Standard,Extended,Bellows Sealed,Radiation Fin Type.
Temp.Range: -196℃ to 540℃
Flow Characteristic:
Equal percentage,Linear,Quick-Open
Actuator:
Multi-spring diaphragm cylinder ,Electric
ISO 5211 ACTUATOR ASSEMBLY

Product Overview

Hastelloy C-276 is a nickel-chromium-molybdenum alloy, a high-performance nickel-based superalloy. This alloy is widely praised for its excellent corrosion resistance and high temperature strength, especially against chlorides. HC276 alloy has a wide range of applications in chemical, petrochemical, Marine engineering, nuclear industry and some medical equipment.

Performance Characteristics

Performance characteristics

– Corrosion resistance: HC276 alloys are highly resistant to a variety of corrosive media, especially in environments containing chlorides.

– High temperature performance: The alloy can still maintain good mechanical properties at high temperatures, and is suitable for parts that work in high temperature environment for a long time.

– Welding performance: It has good welding performance and can be processed by a variety of welding technologies.

– Processability: It can be formed and processed by conventional metal processing technology.

Technical Parameters

Body/Bonnet MaterialHastelloy Alloy
Spool MaterialHastelloy Alloy
Typies of BonnetStandard,Extended,Bellows Sealed,Radiation Fin Type
Pressure RangePN10-PN100,CL150-CL600
Stem MaterialHastelloy Alloy
Valve TypeStraight-through type, Angle type,
Jacket insulated type
Packing MaterialFlexible Graphite
Temp. Range-196℃ to 540℃
Stem Seal FormStandard packing seal,Bellows seal
Leakage Level(ANSI)ANSI B16.104 Grade IV
Flow CharacteristicEqual percentage,Linear,Quick-Open
EndsFlang(RF/FM),Welding
Rangeability30:1 50:1
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Available ActuatorsPneumatic Diaphragm Type(ZP6100)
Pneumatic Piston Type(ZP6200)

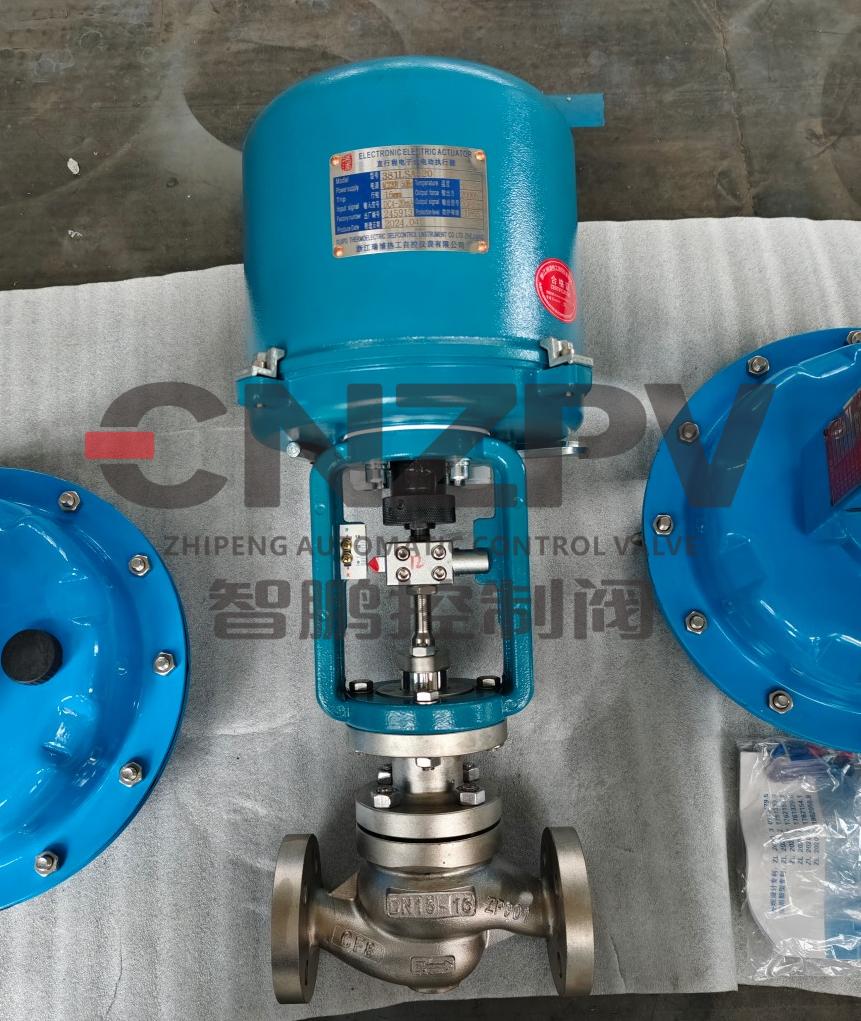

Electric Type
………
