CNZPV®Lined Y-Type Strainer

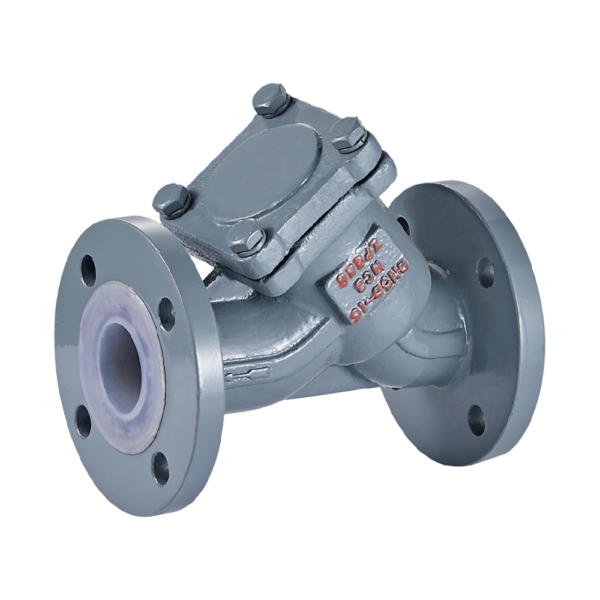

CNZPV®Lined Y-Type Strainer

Categories:

Lined Y-Type Strainer

Nominal Diameter: DN15-200,NPS 1/2″-8″
Nominal Pressure: PN10,PN16,PN25,CL150
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Lining Material: F4(PTFE),F46(FEP),PFA
Temp.Range: -30℃~180℃,-22°F~356°F
Mash Material:PTFE

Product Overview

Strainers are placed in the pipeline to remove/filer out the impurities from the flowing liquid and hence protects the equipment from damage. Strainers are used in conjunction with valves and other accessorises

CNZPV offers PTFE / FEP / PFA  lined Strainers. They are used for highly corrosive chemicals where higher alloy materials are costlier than lined ones, thus protecting the expensive equipment, extending the life of it and assuring superior performance.

The material selection for fluorocarbons lining of valves will depends on working conditions like chemical and mechanical characteristics of the fluid flowing inside the pipe, valves, temperature, etc.

Performance Characteristics

Technical Parameters
