In highly corrosive operating environments, fluorine-lined manual valves are an essential choice. These industrial anti-corrosion valves are operated manually via a handwheel or handle, and all wetted parts—those that come into contact with the process fluid—are lined with fluoroplastics. Their primary advantage lies in combining the mechanical strength of a metal valve body with the exceptional corrosion resistance of fluoroplastics; they are specifically designed for the shut-off and basic flow regulation of highly corrosive media within pipelines.
Compared to standard valves, fluorine-lined manual valves are truly indispensable in corrosive environments. Before exploring their practical applications, it is important to first understand how they are classified. Familiarity with the various types of fluorine-lined manual valves will help in making more informed purchasing decisions.
| Valve Type | Core Operating Mechanism | Typical Applications | Key Performance Characteristics |
| Manual Fluorine-Lined Ball Valve | A handle rotates the ball 90° to open or close the flow. | Designed for rapid shut-off in pipelines carrying strong acids or alkalis in chemical processes. | Features minimal flow resistance, quick opening/closing, and zero-leakage sealing. |
| Manually Operated Fluorine-Lined Butterfly Valve | A handwheel drives a worm-gear mechanism to rotate the butterfly disc through a 0–90° range. | Suitable for large-diameter pipelines used in wastewater and waste gas treatment. | Features a compact, lightweight design with high flow capacity. |
| Manually Operated Fluorine-Lined Diaphragm Valve | A handwheel drives the valve stem downward to press a composite fluoroplastic diaphragm against the flow path, shutting off the flow. | Ideal for pipelines carrying corrosive media that are prone to crystallization or contain solid particles. | Designed without packing, completely eliminating external leakage. |
| Manually Operated Fluorine-Lined Gate Valve | A handwheel operates the gate, raising or lowering it to achieve full-bore shut-off. | Used for acid/alkali storage tanks and long-distance transport pipelines. | Offers low flow resistance and bi-directional sealing; achieves zero leakage in compliance with the API 598 standard. |
| Manually Operated Fluorine-Lined Plug Valve | A handle rotates a fluorine-lined plug—featuring a through-hole—by 90°. | Designed for pipelines transporting highly corrosive media in either direction. | Self-lubricating and maintenance-free; supports bi-directional flow with no installation orientation restrictions. |
The above provides an overview of the classifications for manually operated fluorine-lined valves. If you are looking for recommendations for high-quality fluorine-lined manual valves, please continue reading below.

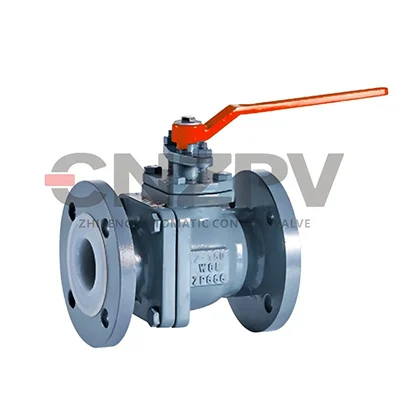

CNZPV API-Standard FEP-Lined Stainless Steel Full-Port Flanged Ball Valve
This series of API-standard FEP-lined stainless steel full-port flanged ball valves features a fluoroplastic lining covering all surfaces of the valve body and core that come into contact with the fluid. This design effectively isolates corrosive media from the metal components, providing superior corrosion protection for all metallic parts. Primarily used in piping systems to shut off flow or regulate the direction of the medium, these ball valves are easy to operate and maintain. They can be installed in either a horizontal or vertical position. They are widely used in applications involving highly corrosive media—such as acids, alkalis, and salts—as well as volatile or highly penetrative gases and liquids.

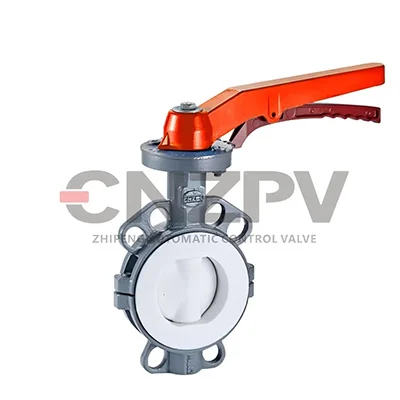

CNZPV RPTFE (Teflon)-Lined Wafer-Type Butterfly Valve with Manual Lever
This is an economical and durable valve. Its internal fluoroplastic lining extends the service life and reduces maintenance costs. The valve is equipped with self-lubricating bearings, which ensure precise guidance of the valve shaft during rotation, effectively preventing jamming or premature wear. Because the lining extends to the sealing surfaces of the valve body, no additional gaskets are required. The securely bonded lining enhances the valve’s longevity and prevents corrosion between the valve body and the disc.

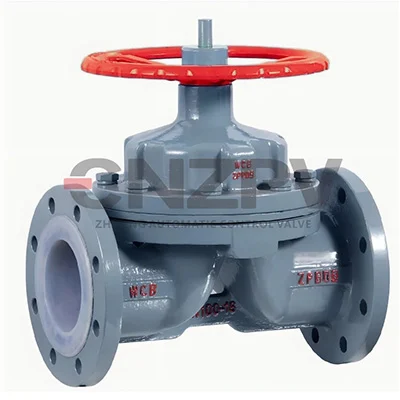

CNZPV Manually Operated Fluorine-Lined Diaphragm Valve
The CNZPV manually operated fluorine-lined diaphragm valve is a specialized type of shut-off valve. Its closing element consists of a corrosion-resistant, flexible material known as a “diaphragm.” This diaphragm separates the lower chamber of the valve body from the upper chamber (the bonnet), protecting the valve stem, metal disc, and other internal components located above the diaphragm from exposure to the medium. Consequently, these fluorine-lined diaphragm valves do not require a traditional packing seal, thereby eliminating the risk of media leakage.

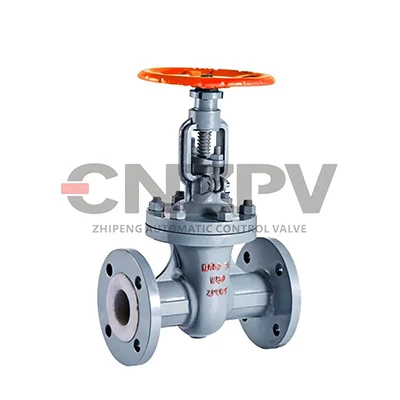

CNZPV FEP-Lined Flanged Rising-Stem Wedge Gate Valve
The valve body and all internal components that come into contact with the process fluid are lined with a layer of fluoroplastic (FEP). This design effectively isolates corrosive media from the metal components, providing superior corrosion protection for all metallic parts. Featuring a compact, robust, and durable construction, this series of valves is suitable for industrial piping systems across various sectors, including oil and gas, power generation, chemical processing, mining, and steel production.
Should you be interested in FEP-lined manual valves, please feel free to contact us—CNZPV is always at your service.
