CNZPV®Pneumatic Forged Stainless Steel Floating Ball Valve-ZPR750F

CNZPV®Pneumatic Forged Stainless Steel Floating Ball Valve-ZPR750F

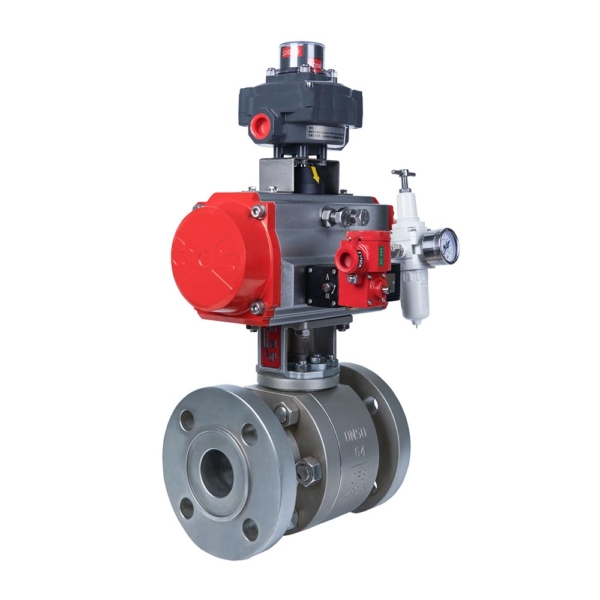

Pneumatic Forged Stainless Steel Floating Ball Valve(ZPR750F)

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10-PN100,CL150-CL600
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: CF8,CF3,CF8M,CF3M
Packing Type: Soft-Seal,Metal-Seal
Temp.Range: ≤450℃(842°F)
Flow Characteristic:O-Notched Ball For Shut-Off(ON-OFF)
V-Notched Ball For Regulating (Equal Percentage)
Actuator: Pneumatic,Electric
ISO 5211 ACTUATOR ASSEMBLY

Product Overview

The ZPR750F Series Pneumatic Forged Stainless Steel Floating Ball Valve, are designed to offer high durability and optimal performance in high pressure and high temperature applications.Manufactured from the highest quality stainless steel materials, these valves are ideal for demanding industrial environments.



Classification Of Metal Ball Valves:
①ZPR750F:Soft-Seal O-Notched Shut-Off Ball Valve
②ZPR750Y:Metal-Seal O-Notched Shut-Off Ball Valve
③ZPR760F:V-Notched Regulating Ball Valve
④ZPR770F:3-way Reversing Ball Valve
⑤ZPR780F:O-Notched Discharge Ball Valve
⑥ZPR790F:4-Way Reversing Ball Valve

Performance Characteristics

The ZPR750F Series Pneumatic Forged Stainless Steel Floating Ball Valve is manufactured by forging, resulting in a denser and stronger structure compared to cast valves.Common materials include stainless steel, carbon steel and special alloys to withstand extreme conditions.The valve features a high fluid capacity, compact structure, excellent sealing performance, long service life, cost-effectiveness, and easy maintenance.It finds extensive applications in industries such as petroleum, chemical, natural gas, electric power, metallurgy, food processing, and pharmaceuticals. Moreover, it can be utilized for water treatment systems,steam, oil, liquefied gas (LPG), natural gas (NG), and coal gas mediums. Additionally, the fireproof option and special hardening treatment are available to meet customer requirements for enhanced safety and broader applications.

ADVANTAGES:
1. Ball valves exhibit minimal flow resistance due to their low fluid resistance.
2. With a simple structure, small size, and light weight, they are highly convenient for various applications.
3. The ball valve have two tight and reliable sealing surfaces, commonly made of PTFE material, ensure excellent sealing performance and complete isolation in vacuum systems.
4. Operating the valve is effortless as it only requires a 90° rotation from full open to full close position, allowing for easy remote control.
5. Maintenance is hassle-free with the easily disassembled and replaceable movable sealing rings in the simple structure of the ball valve.
6. When fully open or closed, the ball and valve seat sealing surface effectively isolates the medium without causing erosion on the valve seat surface.
7. Ball valves have a wide range of applications.The diameters from a few millimeters to few meters, suitable for both high vacuum and high-pressure conditions.
8. The wiping action during opening and closing enables ball valves to be used in media containing suspended solid particles.

Technical Parameters

Body/Upper Bonnet MaterialCF8、CF8M、CF3M、TA2、HC
Core MaterialCF8、CF8M、CF3M、TA2、HC
Seat MaterialPTFE;TFM;PI
Packing MaterialPTFE & Flexible Graphite
Valve TypeBall Valve
Temp. Range-20℃~250℃(Soft-seal);-60℃~450℃(Metal-Seal)
Leakage LevelANSI B16.104 Grade VI(Soft-seal);ANSI B16.104 Grade IV(Metal-Seal)
Flow CharacteristicON/OFF
EndsFlang;Welding
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Actuator
(Linear Motion Type)
Pneumatic Piston Type
Electric Type

※ Medium temperature ≤120℃, choose material PTFE for seat and packing.
※ Medium temperature ≤180℃, choose material TFM4215 for seat and packing.
※ Medium temperature ≤250℃, choose material PI for seat and packing.
