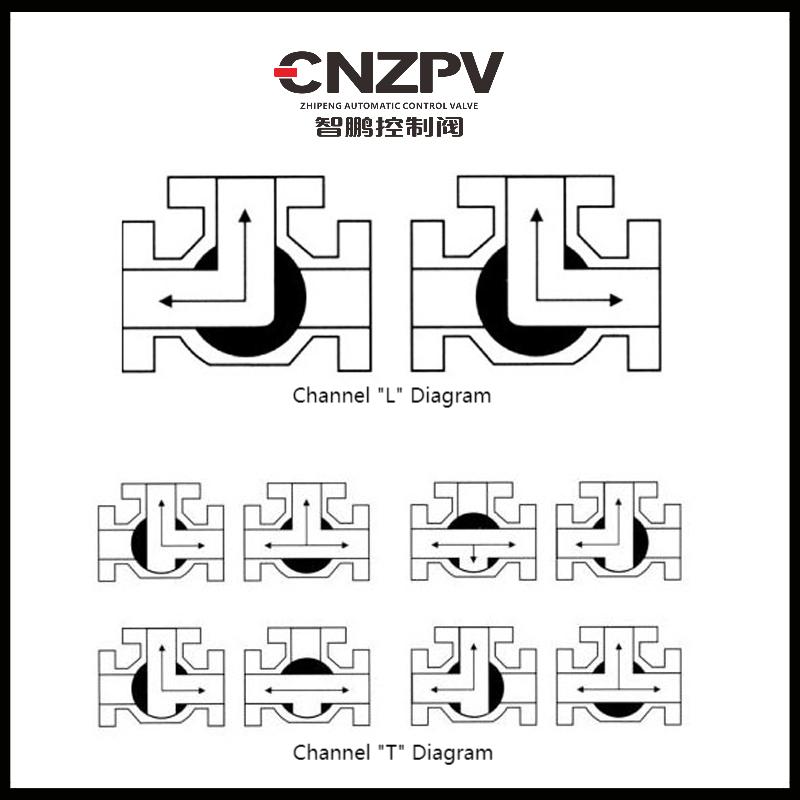

CNZPV®Stainless Steel 3-Way Reversing Ball Valve(T/L Channel)With Pneumatic Actuator-ZPR770F

CNZPV®Stainless Steel 3-Way Reversing Ball Valve(T/L Channel)With Pneumatic Actuator-ZPR770F

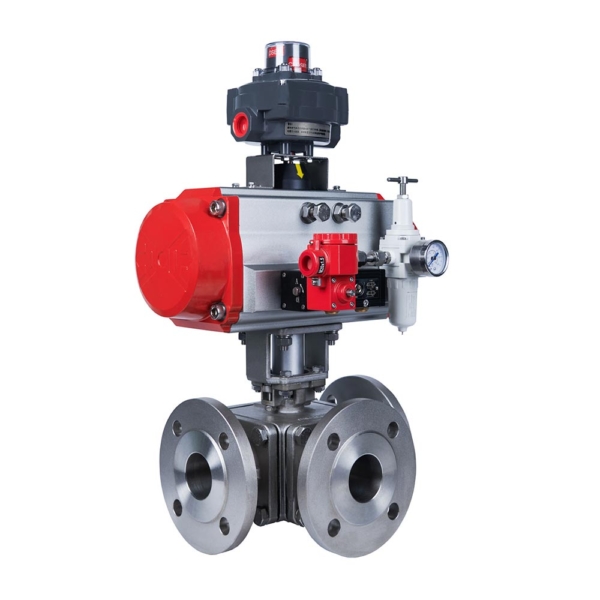

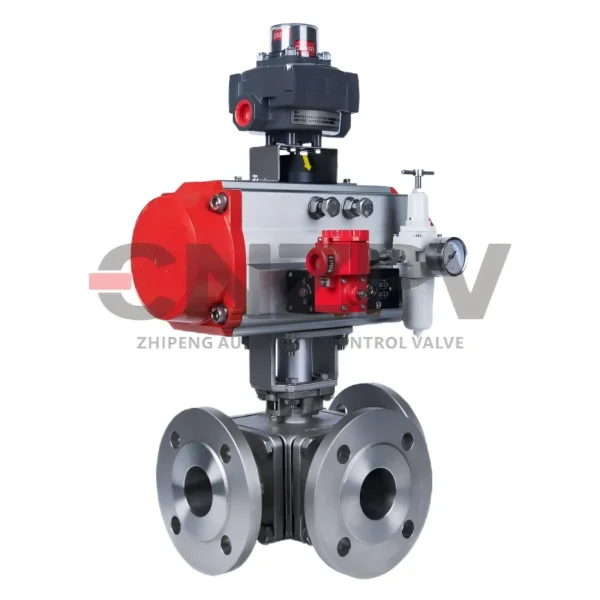

Stainless Steel 3-Way Reversing Ball Valve(T/L Channel)With Pneumatic Actuator(ZPR770F)

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10-PN100,CL150-CL600
Connection Standard: HG20592-2009,ANSIB16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Packing Type: Soft-Seal,Metal-Seal
Temp. Range: -20℃~250℃(Soft-Seal),-60℃~450℃(Metal-Seal)
Flow Characteristic: Linear,Quick-Open,ON/OFF
Actuator: Pneumatic,Electric
ISO 5211 ACTUATOR ASSEMBLY

Product Overview

The ZPR700 series metal Shut-off ball valve features a high fluid capacity, compact structure, excellent sealing performance, long service life, cost-effectiveness, and easy maintenance.
It finds extensive applications in industries such as petroleum, chemical, natural gas, electric power, metallurgy, food processing, and pharmaceuticals. Moreover, it can be utilized for water treatment systems,steam, oil, liquefied gas (LPG), natural gas (NG), and coal gas mediums. Additionally, the fireproof option/anti-static design and special hardening treatment are available to meet customer requirements for enhanced safety and broader applications.

Classification Of Metal Ball Valves:
①ZPR750F:Soft-Seal O-Notched Shut-Off Ball Valve
②ZPR750Y:Metal-Seal O-Notched Shut-Off Ball Valve
③ZPR760F:V-Notched Regulating Ball Valve
④ZPR770F:Three-way Reversing Ball Valve
⑤ZPR780F:O-Notched Discharge Ball Valve
⑥ZPR790F:Four-Way Reversing Ball Valve

Performance Characteristics

Versatile and reliable option for flow control in different directions. Designed for industrial applications, it allows the interconnection of multiple lines or systems, offering flexibility and efficiency. Its robust construction and its flanges guarantee a Safe and resistant sealed.In addition, according to the requestment of customers,  fire protection type, special hardening treatment type can be selected, to provide safer and more extensive applications
This valve is widely used in sectors such as oil, gas, steam,LNG,NG,chemistry, food processing and many other industries where a Precise and reliable control of the flow in multiple directions.



ADVANTAGES:

1. Ball valves exhibit minimal flow resistance due to their low fluid resistance.
2. With a simple structure, small size, and light weight, they are highly convenient for various applications.
3. The ball valve have tight and reliable sealing surfaces, commonly made of PTFE material, ensure excellent sealing performance and complete isolation in vacuum systems.
4. Maintenance is hassle-free with the easily disassembled and replaceable movable sealing rings in the simple structure of the ball valve.
5. Full-port diameters minimize pressure drops with high flow capacity and unrestricted medium flow direction.
6. A variety of actuators and accessories can be configured for accurate alignment and increased cycling life. suitable for both high vacuum and high-pressure conditions.

Technical Parameters

Body/Upper Bonnet MaterialWCB、CF8、CF3、CF8M、CF3M、TA2、HC
CF8、CF3、CF8M、CF3M、TA2、HC
Seat TypeSoft Seat(PTFE)/Metal Seat With Special Hardening Treatment(Stellite surfacing treatment)
Packing MaterialV-PTFE, V-Graphite
Valve TypeMulti-Port Ball Valve
Temp. Range-20℃~250℃(Soft-Seal),-60℃~450℃(Metal-Seal)
Leakage LevelANSI B16.104 Class VI(Soft-Seal),ANSI B16.104 Class IV(Metal-Seal)
Flow CharacteristicLinear,Quick-Open,ON/OFF
EndsFlang(RF/FM)
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Actuator
(Linear Motion Type)
Pneumatic Piston Type
Electric Type

※ Medium temperature ≤120℃, choose material PTFE for seat and packing.
※ Medium temperature ≤180℃, choose material TFM4215 for seat and packing.
※ Medium temperature ≤250℃, choose material PI for seat and packing.
