CNZPV®Self-Operated Pressure Regulating Valve-ZZYP

CNZPV®Self-Operated Pressure Regulating Valve-ZZYP

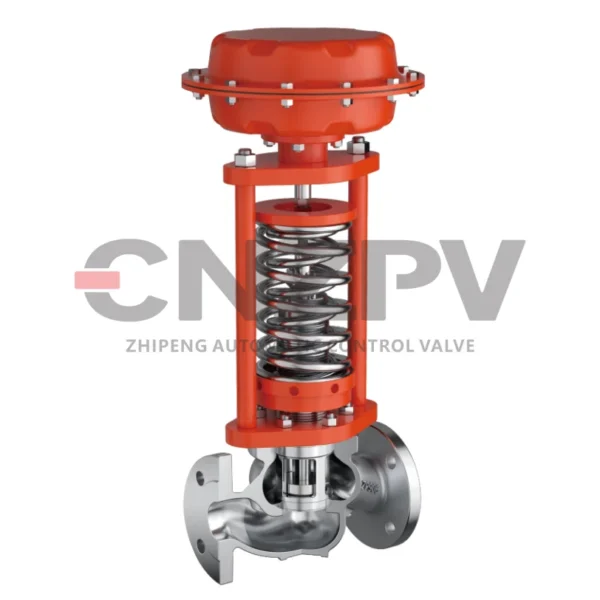

Self-Operated Pressure Regulating Valve(ZZYP)

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10,PN16,PN25,CL150-600
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF8M,CF3M
Spool&Seat Type: Single-Seat, Sleeve-Guided Seat,Double-Seat
Packing Type: Soft-Sealing,Metal-Sealing
Temp. Range: ≤350℃(≤662°F)
Flow Characteristic: Quick-Open
Actuator Type: Pneumatic Diaphragm/Piston
Acting Form:
Pressure relief @ Inlet Side: (K-Modle)
Pressure reduce @ Outlet Side: (B-Modle)

Product Overview

The self-operated regulating valve is a valve device that integrates detection, transmission, control and execution. It is very different from the control valve. The significant feature of the self-operated regulating valve is that it does not require external energy (power supply, air source) and directly uses the energy of the controlled medium for automatic control and operation. As long as the valve uses auxiliary energy, it cannot be called “self-operated”. This concept must be clarified, otherwise it will cause misunderstanding to suppliers or manufacturers!

There are the most types of self-operated pressure regulating valves, including the following types:
●ZPL610 (ZZYP, ZZYM) self-operated pressure regulating valve
●ZPL620 (ZZVP, ZZVM) self-operated micro-pressure regulating valve
●ZPL630 (ZZYVP-BII) pilot pressure regulating valve (nitrogen sealing device)
●ZFQ explosion-proof fire-blocking breathing valve

Performance Characteristics

The ZZYP self-acting pressure regulating valve is an executive product that does not require any external energy and uses the energy of the medium to be regulated to automatically adjust. The biggest feature of this product is that it can be used in places without electricity or gas, while saving energy. The pressure setting period can be adjusted freely within a certain range. The ZZYP self-operated pressure regulating valve has three types of valve internal parts according to the needs of various process occasions:
1. Single-seat self-operated pressure regulating valve
2. Sleeve-guided self-operated pressure regulating valve
3. Double-seat self-operated pressure regulating valve
The ZZYP self-operated pressure regulating valve has three types of valve covers according to the needs of various process occasions:
1. Ordinary (general occasions)
2. Long neck (large pressure regulation range)
3. Heat dissipation (temperature 350~550℃)
The ZZYP self-operated pressure regulating valve has three types of actuators according to the needs of various process occasions:
1. Diaphragm (ordinary diaphragm and enhanced diaphragm)
2. Piston
3. Metal diaphragm (0Cr18Ni9)

Technical Parameters

Main parts materials

Name of partsMaterials
BodyZG230-450、ZG0Cr18Ni9、ZG0Cr18Ni12Mo2
BonnetZG230-450、ZG0Cr18Ni9、ZG0Cr18Ni12Mo2
Core1Cr18Ni9、0Cr18Ni12Mo2(bead welding)、PTFE
Seat1Cr18Ni9、0Cr18Ni12Mo2(bead welding)
Valve Stem1Cr18Ni9、0Cr18Ni12Mo2
Membrane coverQ235、Q235 PTFE(Coating)
Spring60Si2Mn
Seal ring/gasketStainless Steel+Flexible Graphite
PackingPTFE+Flexible Graphite
Bellows PipeStainless Steel
DiaphragmNitrile、Fluorine、Oil-Resistant Rubber
O-RingPTFE、Oil-Resistance Rubber
