In industrial production, media leakage is undoubtedly a troublesome issue, and preventing it is a key concern for industry professionals. For valve manufacturers, producing high-quality valves capable of addressing these practical challenges is a top priority.

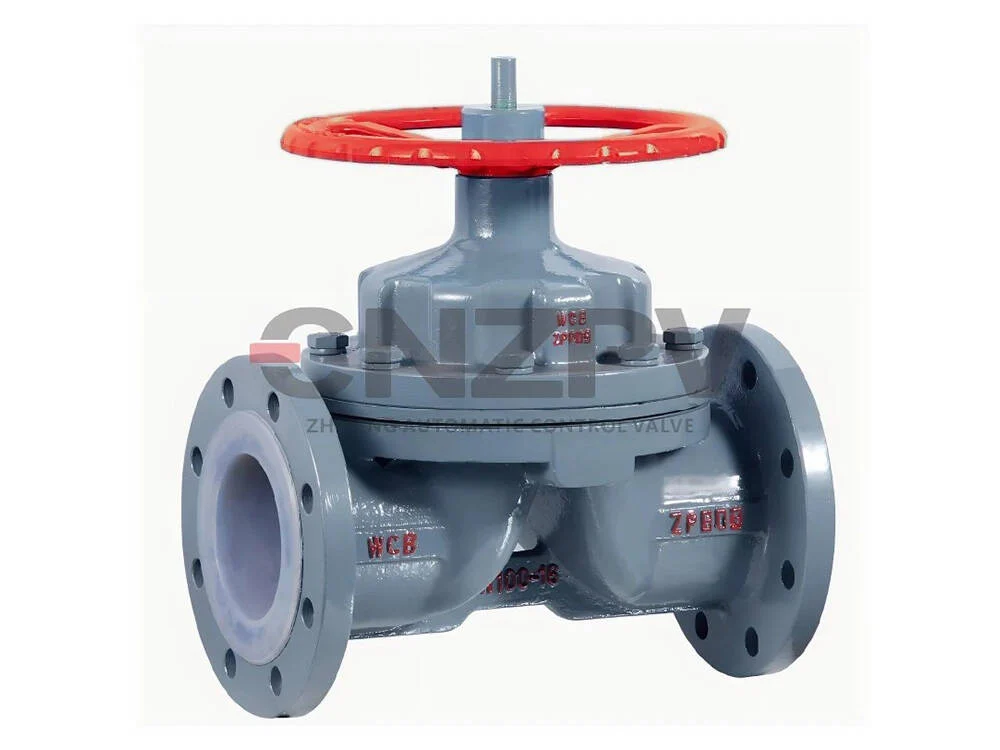

The diaphragm valve is a type of shut-off valve with a unique design. Its core feature is the use of a flexible diaphragm to completely isolate the valve body’s flow path from the actuating mechanism. This design eliminates the risk of internal components corroding due to media contact and removes the potential for leaks often associated with traditional sealing packing.

Ingenious Working Principle

Diaphragm valves regulate or completely shut off fluid flow by utilizing the interaction between an elastic diaphragm and the valve seat. When the actuator moves the valve stem up or down, it directly compresses or releases the diaphragm; the resulting deformation controls the flow path, eliminating the need for metal sealing components to come into contact with the medium. As a linear-motion valve, it is ideally suited for high-precision flow control.

This unique structure makes it naturally suited for specialized operating conditions. Whether handling corrosive acids and alkalis, high-viscosity slurries, or media requiring extreme cleanliness—such as in the food and pharmaceutical industries—diaphragm valves ensure stable, residue-free control without contaminating the medium or suffering corrosion damage.

Advantages of Diaphragm Valves

The flow path is smooth and free of dead zones, resulting in low flow resistance and minimal material accumulation.

Sealing is achieved entirely through diaphragm deformation, ensuring excellent sealing performance.

Maintenance requires only replacing the diaphragm rather than dismantling the entire valve body, resulting in very low operating and maintenance costs.

However, due to material limitations, standard diaphragm valves have upper limits for pressure and temperature tolerance; they are best suited for low-to-medium pressure applications and temperatures not exceeding 180°C.

Application Areas

• Biopharmaceuticals: Transporting purified water, managing chemical reagents in semiconductor plants, and handling corrosive media in wastewater treatment facilities.
• Chemical Industry: Reliably transporting highly corrosive media such as sulfuric acid and hydrochloric acid; suitable for high-viscosity fluids and those containing suspended particles.
• Semiconductor and Vacuum Sectors: Capable of handling ultra-pure media with minimal metal ion leaching; compatible with high-vacuum piping to ensure superior vacuum system sealing.
• Water Treatment: Enables precise flow management, which is crucial for optimizing resource utilization and enhancing the efficiency of water treatment plants.
